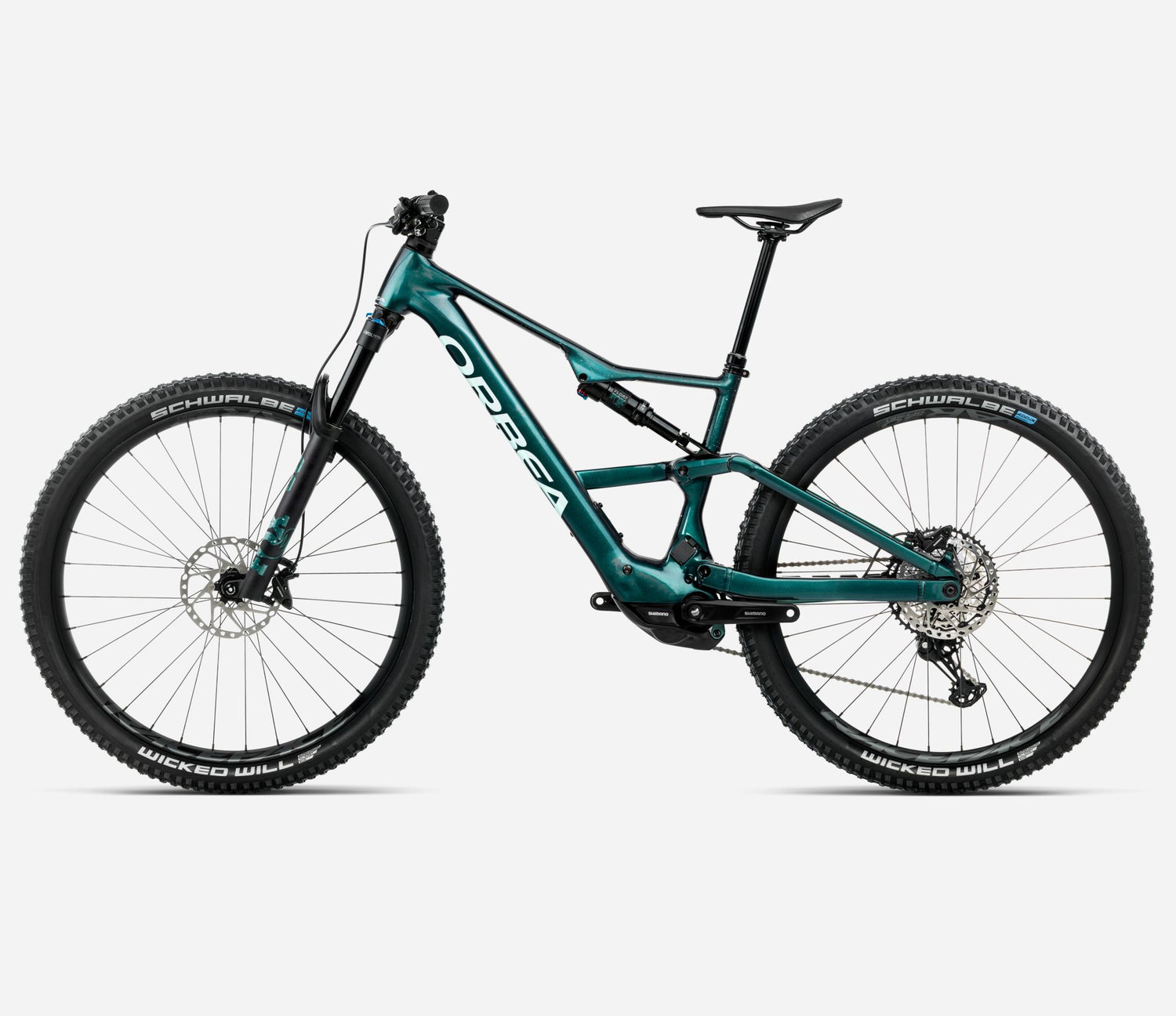

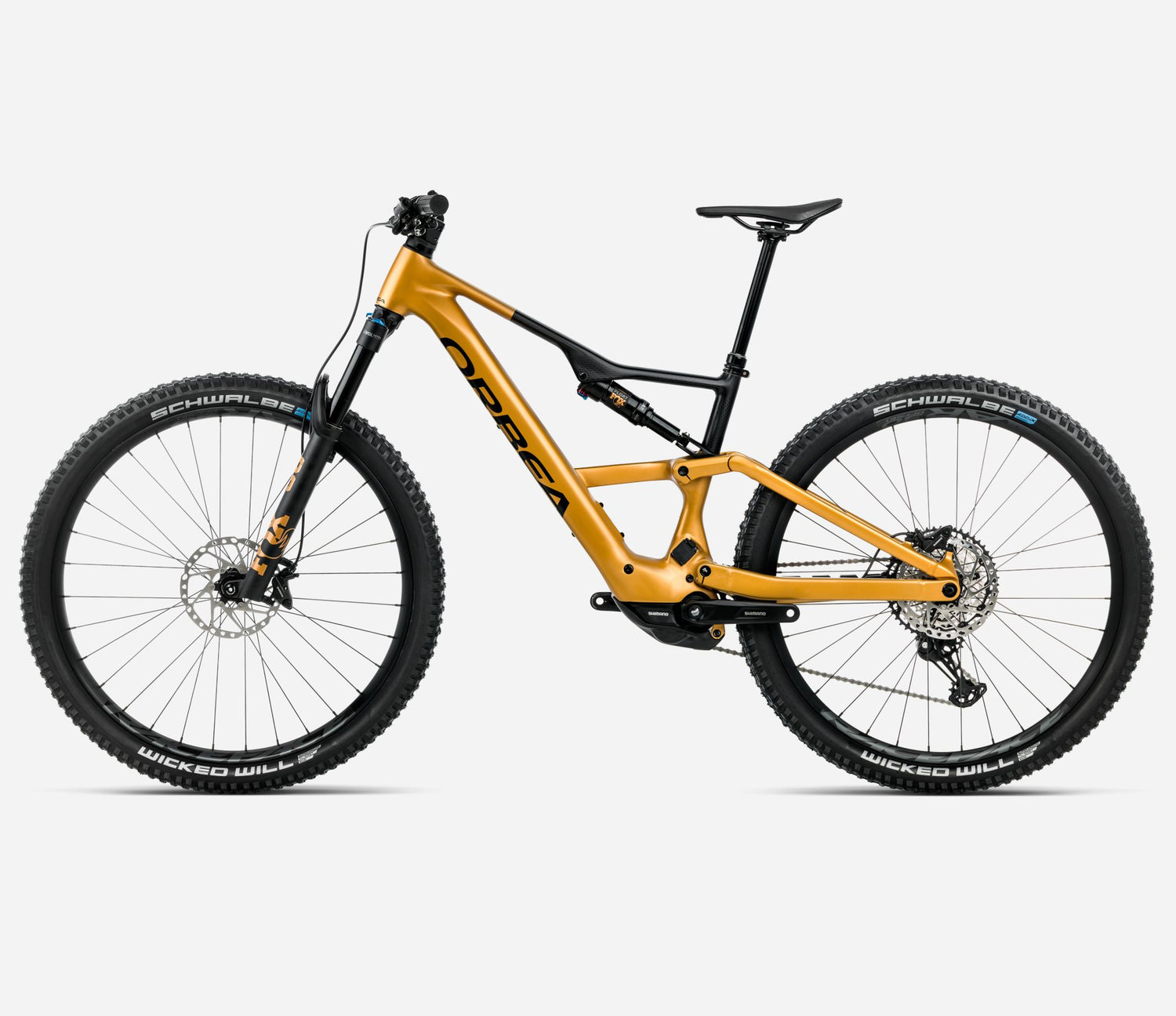

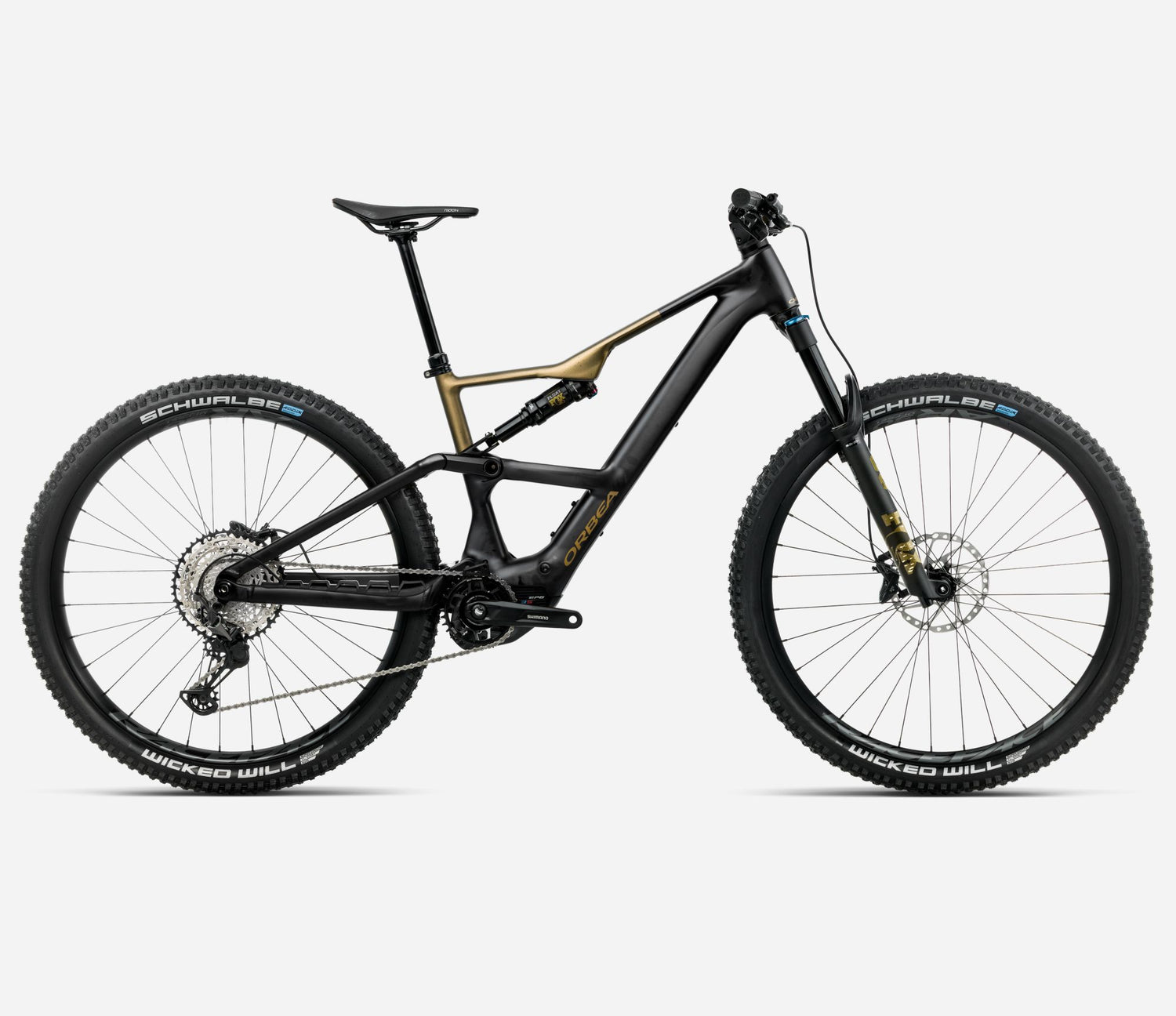

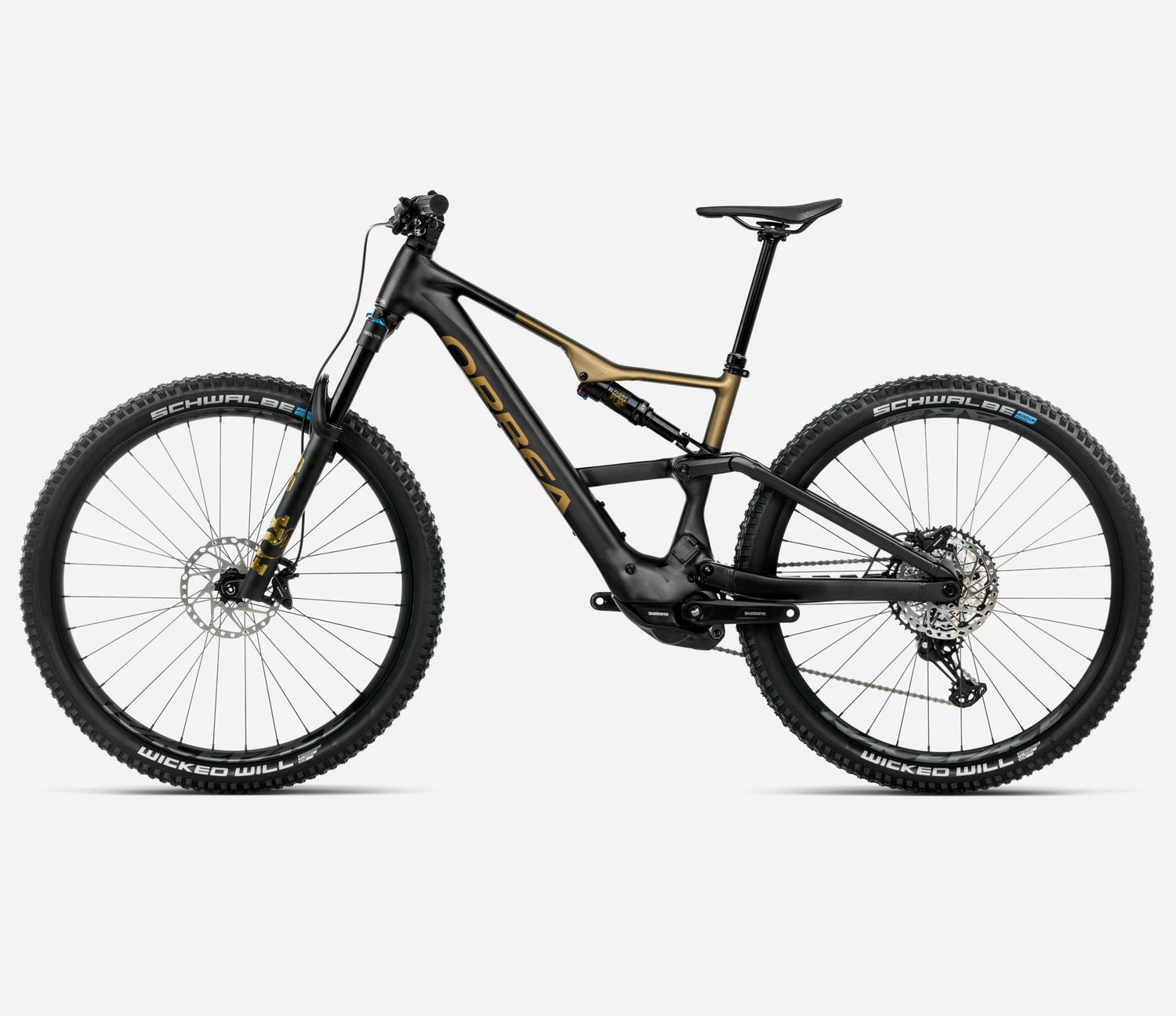

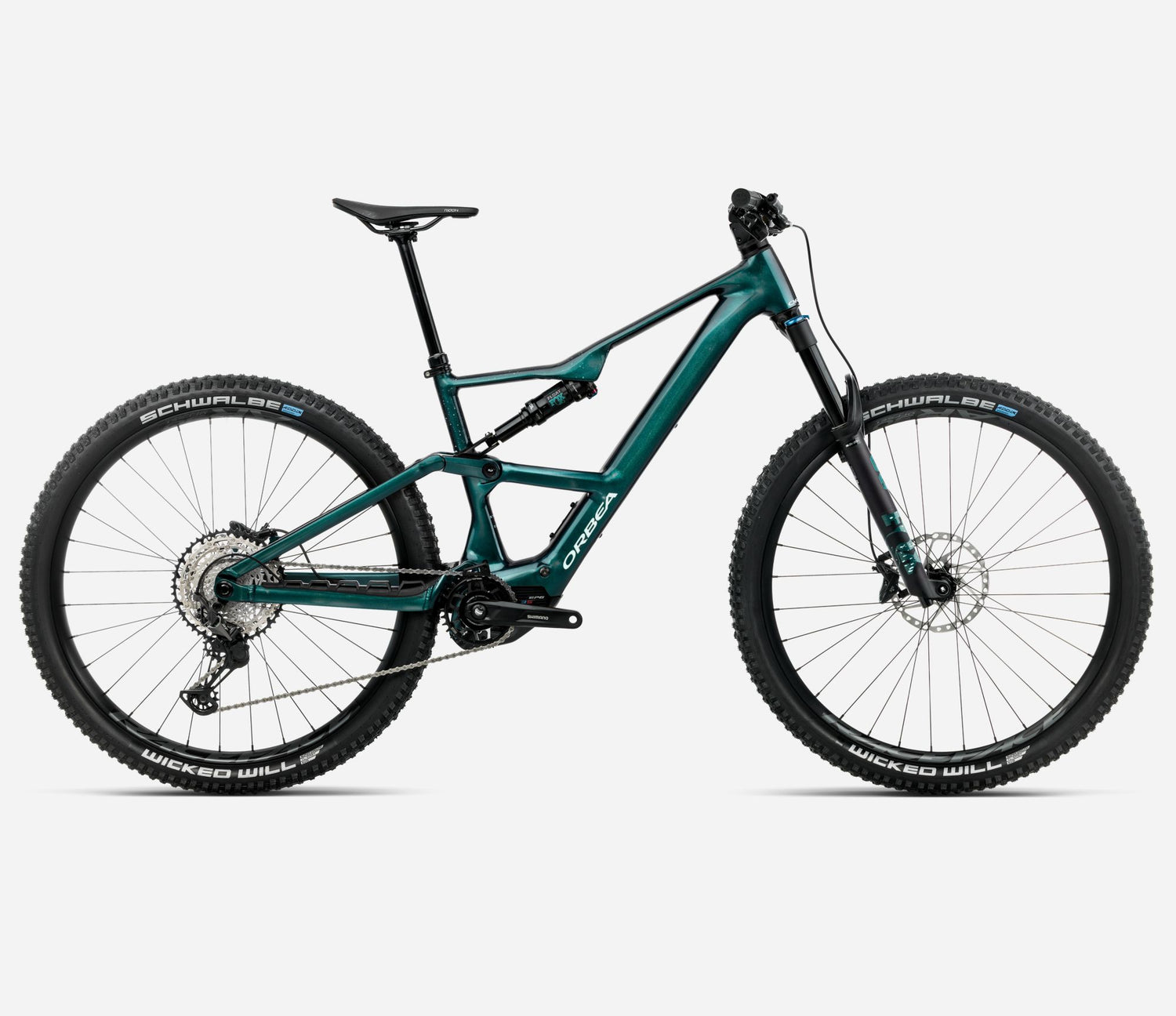

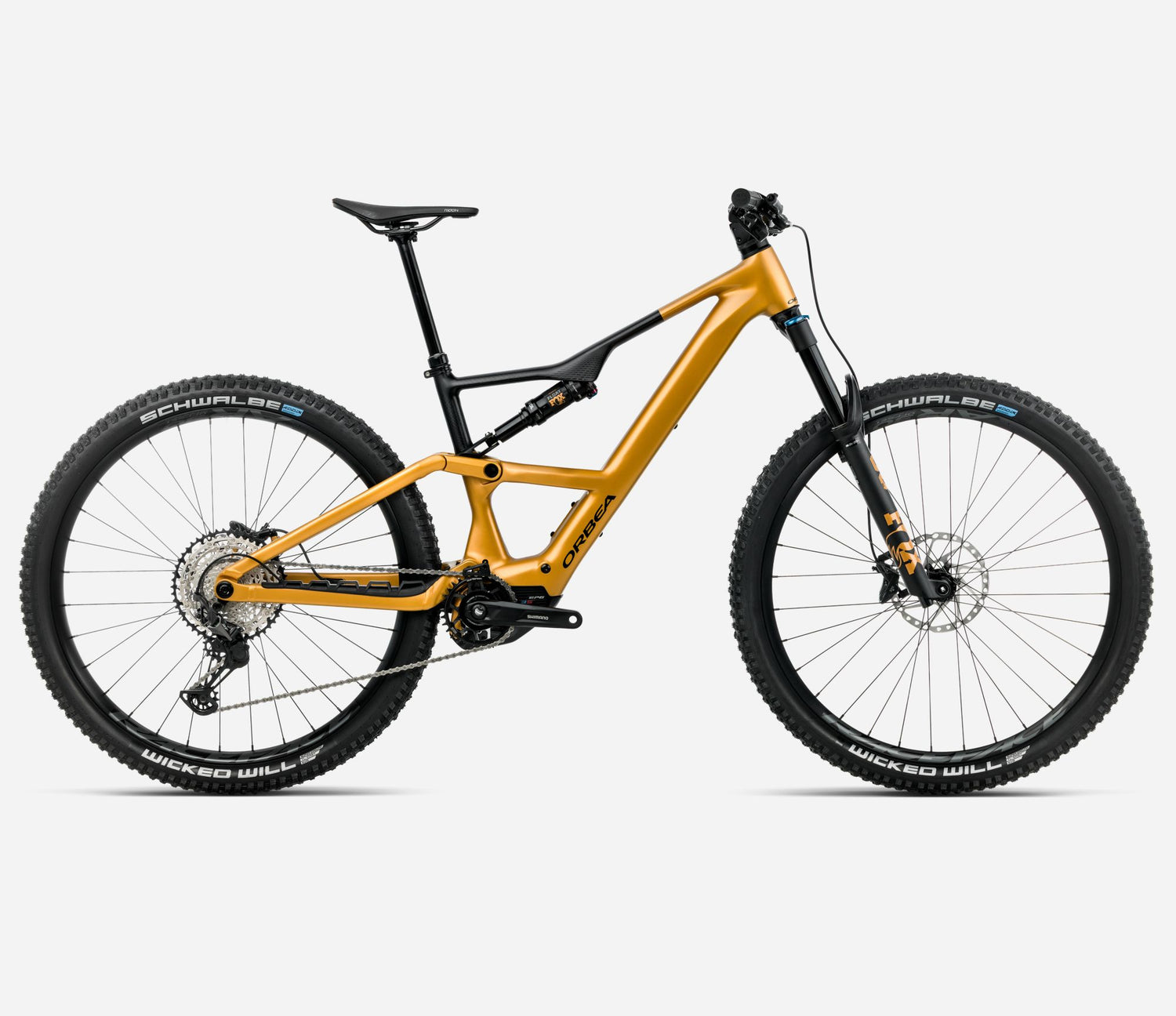

Orbea Rise SL H10 Alloy 630Wh - 2026

Name: Orbea Rise SL H10 Alloy 630Wh - 2026
Brand: Orbea
Availability: InStock

£5,199.00

💳

From ~£144/mo 0% interest-free finance

🚲

Cycle to Work Save up to 47% tax-free

Colour: ESCAPE GREEN-SPLASH ICE GREEN (GLOSS)

Size: Small

View size guide ↓

🔧 Expert build & setup

🚚 Free UK delivery

🚲 Test ride in Poole

📞 Speak to an expert

About the Orbea Rise SL H10 Alloy 630Wh - 2026

More bike, Less E! A bike that works with you to turn every trail, feature, and corner into pure joy. Low weight and natural assistance mean lightning reflexes and fun handling that connect you to the trail.

Frameset

Frame

Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148

Shock

Fox Float Performance 2-Pos Evol LV custom tune 210x50mm

Fork

Fox 36 Float SL Performance 140, Grip, 3-Pos, 15x110

Steerer tube

Alloy 1-1/2", Black Oxidated Bearing

Ebike

Battery

Orbea Internal 630Wh

RANGE EXTENDER

N/A

Motor

Shimano EP600 RS Gen2 MC

Display

N/A

CHARGER

Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote

EN600-L

Drivetrain

Chainring

e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine

Crank

Shimano Steps EM600

Shifters

Shimano SLX M7100 I-Spec EV

Cassette

Shimano CS-M7100 10-51t 12-Speed

Rear derailleur

Shimano XT M8100 SGS Shadow Plus

Chain

Shimano M6100

Chainguide

Orbea eBike chainguide

Cockpit

Handlebar

OC Mountain Control MC31, Rise20, Width 800

Stem

OC Mountain Control MC20, 0º

Computer Mount

OC Computer Mount CM-05, Garmin/Sigma

Brakes

Shimano M6120 Hydraulic Disc

Rotors

Shimano RT64 Rotors 180mm front / 180mm rear

Brakes Configuration

N/A

Wheels

Race Face AR 30c Tubeless Ready

Tyres

Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown

Tyres

Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown

Components

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Saddle

Fizik Terra Ridon X5 145mm

Grips

OC Lock On

Accessories

Lights

N/A

Tools

N/A

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

📐

Full geometry & technical data

Orbea publish detailed geometry tables — reach, stack, wheelbase, chainstay and angles — for every frame size directly on their website.

View on Orbea.com →

Not sure which size suits you? Call us on 01202 028162 — we ride these bikes and can advise.

Not sure on size? Call us on 01202 028162 — our team can advise based on your height, riding style and inseam.

XS

Rider height155–165cm / 5'1"–5'5"

Small

Rider height163–173cm / 5'4"–5'8"

Medium

Rider height171–181cm / 5'7"–5'11"

Large

Rider height179–189cm / 5'10"–6'2"

X-Large

Rider height187–197cm / 6'1"–6'5"

These are Orbea's recommended height ranges. Fit is personal — ask us and we'll help you find the right size. MyO custom builds can also adjust geometry to suit your preferences.
