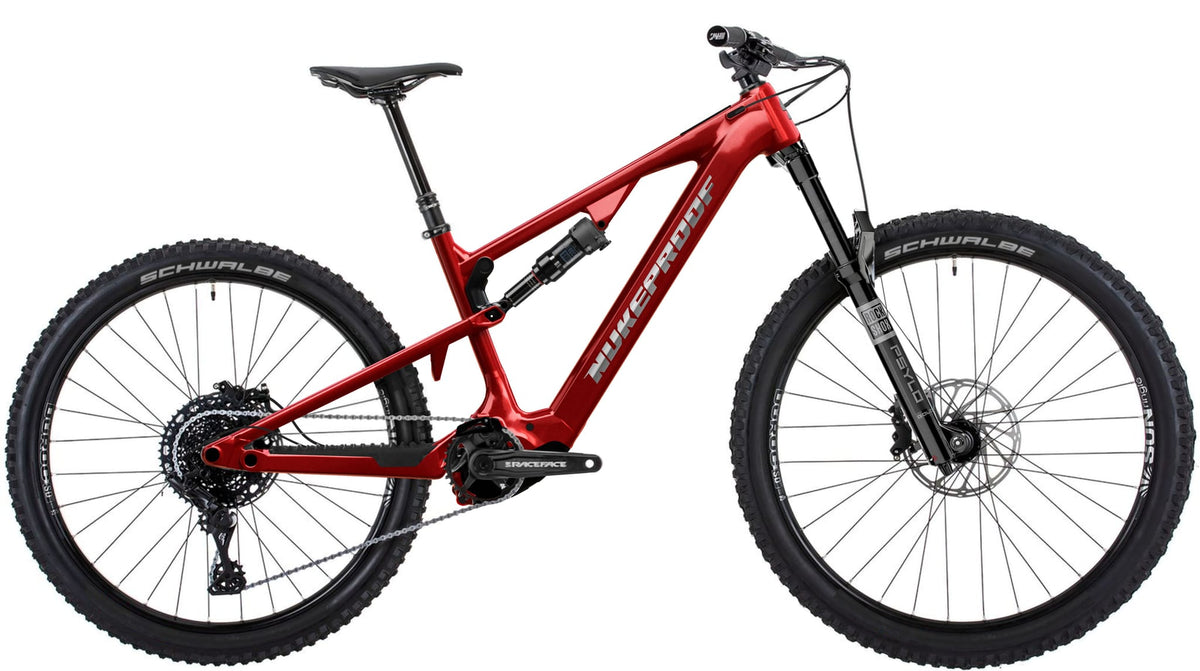

Nukeproof Kilowatt 297 Alloy Comp Trail E-Bike
Tax included.
Talk to our team on 01202 028162 — no pressure, just honest advice from people who ride.
Lightweight full-power all-mountain e-bike.
The Kilowatt Alloy Comp is the most affordable way into Nukeproof's new Avinox-powered all-mountain e-bike. You get the same 160/150mm platform, mullet wheels and progressive geometry as the carbon bikes, built around a hydroformed alloy frame and a dependable SRAM 12-speed build.
Suspension is a RockShox Psylo Gold RC fork with a RockShox Deluxe Select shock, and stopping comes from SRAM DB4 brakes. Shifting is a SRAM 1x12 mechanical drivetrain with an 11-50T cassette, and Schwalbe Magic Mary tyres handle the grip.
The Kilowatt uses Nukeproof's four-bar Horst-link layout with a single-piece linkage for a stiff, predictable ride, 29" front and 27.5" rear wheels (with a flip chip for full 29"), and a fully integrated battery with tube-in-tube internal cable routing.
Key features

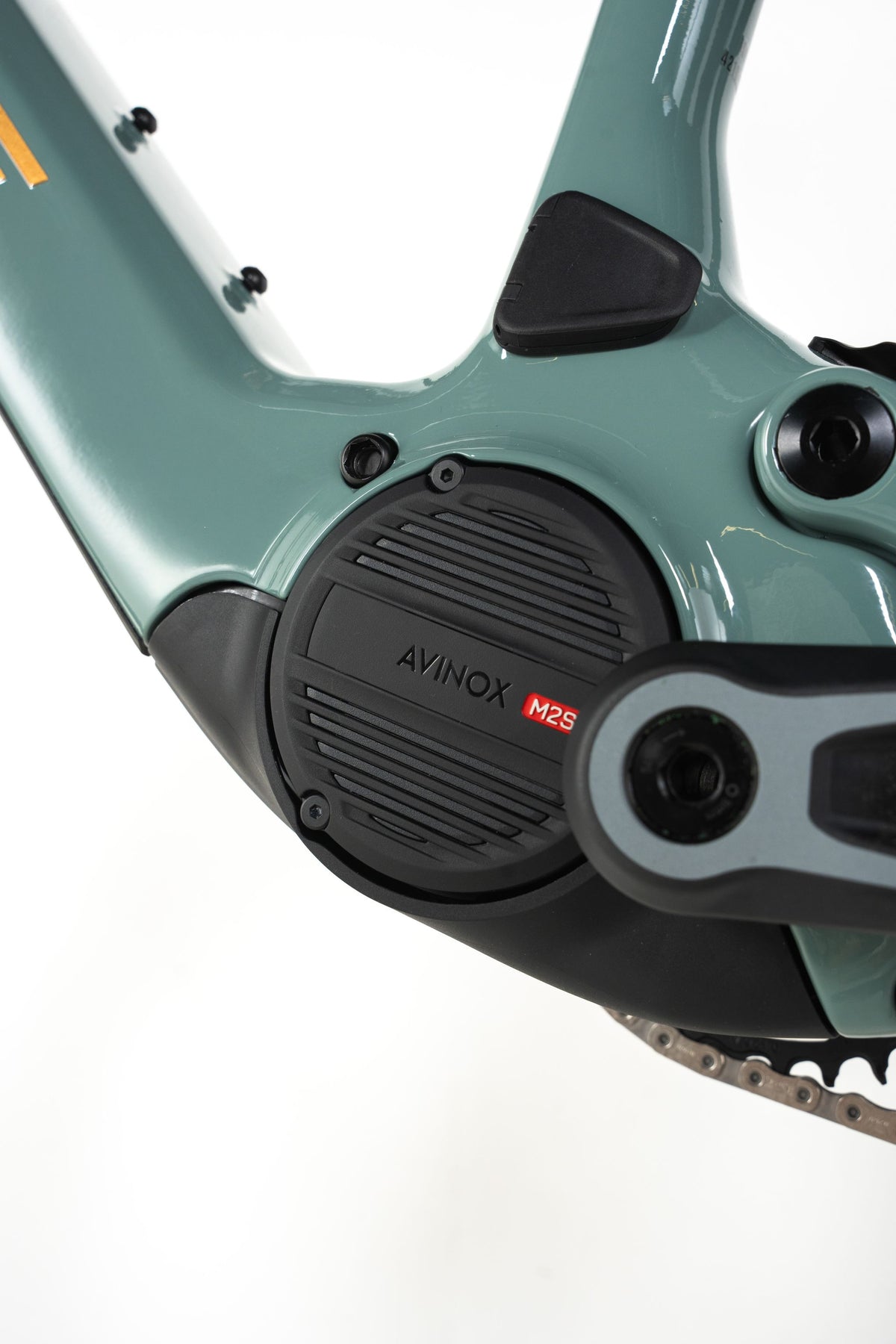

- Avinox M2 motor (125Nm, 1,100W peak)
- Integrated battery: 600Wh on Small, 800Wh on Medium to X-Large
- 160mm fork / 150mm rear travel
- Hydroformed aluminium frame, 64° head angle, 450mm chainstays
- Mixed-wheel setup with flip chip for full 29"
- Supplied with 4A charger
- Lifetime transferable frame warranty when registered within 30 days (annual dealer service required)
Please note: product images are a guide only. The bike pictured may differ slightly from the listed specification, so please refer to the spec sheet for the exact build. Contact us if you have any questions.
Geometry (mm)
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 |
| Stack | 620.24 | 629.3 | 638.29 | 647.31 |
| Effective Top Tube Length | 572.57 | 600.67 | 623.78 | 646.89 |
| Seattube Length | 380 | 410 | 440 | 460 |
| Effective Seattube Angle (Low) | 77.5° | 77.5° | 77.5° | 77.5° |
| Seattube Angle (Actual) - (Low) | 71° | 71° | 71° | 71° |
| Saddle Height at Saddle Offset | 650 | 700 | 750 | 800 |
| Saddle Offset at Saddle Height | 146.4 | 164.4 | 174.2 | 191.8 |
| Headtube Length | 100 | 110 | 120 | 130 |
| Headtube Angle | 64 | 64 | 64 | 64 |
| Chainstay Length | 450 | 450 | 450 | 450 |
| Front Centre | 759.77 | 789 | 813.3 | 837.59 |
| Wheelbase | 1209 | 1238.3 | 1262.7 | 1287 |
| Bottom Bracket Drop | -37 | -37 | -37 | -37 |
| Bottom Bracket Height | 336 | 336 | 336 | 336 |
| Stand Over Height | 745 | 750 | 755 | 760 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Trail | 132 | 132 | 132 | 132 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Axle to Crown | 571 | 571 | 571 | 571 |
| Maximum Seatpost Insert | 225 | 255 | 285 | 305 |
Delivery:
Free Specialist Bike Delivery when you spend £4000 or more
Bike Delivery under £4000 is £50
On bikes over £4000 we will deliver these bikes fully built with no box. This ensures the bikes arrive in ready to go condition and you don't need to worry about assembly.
Bike Build:
All bikes are built by our expert mechanics who will perform a full Pre Delivery Inspection on your bicycle.
Returns:
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.
To be eligible for a return, your bike must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can contact us at info@wheeliebikeshop.com. If your return is accepted, we’ll send you the returns address, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted. All postage/delivery costs are at the expense of the customer.
We do not except returns or give refunds for any Pre-Order or Special Order items that have been ordered.
Description
Lightweight full-power all-mountain e-bike.
The Kilowatt Alloy Comp is the most affordable way into Nukeproof's new Avinox-powered all-mountain e-bike. You get the same 160/150mm platform, mullet wheels and progressive geometry as the carbon bikes, built around a hydroformed alloy frame and a dependable SRAM 12-speed build.
Suspension is a RockShox Psylo Gold RC fork with a RockShox Deluxe Select shock, and stopping comes from SRAM DB4 brakes. Shifting is a SRAM 1x12 mechanical drivetrain with an 11-50T cassette, and Schwalbe Magic Mary tyres handle the grip.
The Kilowatt uses Nukeproof's four-bar Horst-link layout with a single-piece linkage for a stiff, predictable ride, 29" front and 27.5" rear wheels (with a flip chip for full 29"), and a fully integrated battery with tube-in-tube internal cable routing.
Key features
- Avinox M2 motor (125Nm, 1,100W peak)
- Integrated battery: 600Wh on Small, 800Wh on Medium to X-Large
- 160mm fork / 150mm rear travel
- Hydroformed aluminium frame, 64° head angle, 450mm chainstays
- Mixed-wheel setup with flip chip for full 29"
- Supplied with 4A charger
- Lifetime transferable frame warranty when registered within 30 days (annual dealer service required)
Please note: product images are a guide only. The bike pictured may differ slightly from the listed specification, so please refer to the spec sheet for the exact build. Contact us if you have any questions.
Geometry (mm)
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 |
| Stack | 620.24 | 629.3 | 638.29 | 647.31 |
| Effective Top Tube Length | 572.57 | 600.67 | 623.78 | 646.89 |
| Seattube Length | 380 | 410 | 440 | 460 |
| Effective Seattube Angle (Low) | 77.5° | 77.5° | 77.5° | 77.5° |
| Seattube Angle (Actual) - (Low) | 71° | 71° | 71° | 71° |
| Saddle Height at Saddle Offset | 650 | 700 | 750 | 800 |
| Saddle Offset at Saddle Height | 146.4 | 164.4 | 174.2 | 191.8 |
| Headtube Length | 100 | 110 | 120 | 130 |
| Headtube Angle | 64 | 64 | 64 | 64 |
| Chainstay Length | 450 | 450 | 450 | 450 |
| Front Centre | 759.77 | 789 | 813.3 | 837.59 |
| Wheelbase | 1209 | 1238.3 | 1262.7 | 1287 |
| Bottom Bracket Drop | -37 | -37 | -37 | -37 |
| Bottom Bracket Height | 336 | 336 | 336 | 336 |
| Stand Over Height | 745 | 750 | 755 | 760 |
| Fork Travel | 160 | 160 | 160 | 160 |
| Trail | 132 | 132 | 132 | 132 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Axle to Crown | 571 | 571 | 571 | 571 |
| Maximum Seatpost Insert | 225 | 255 | 285 | 305 |
