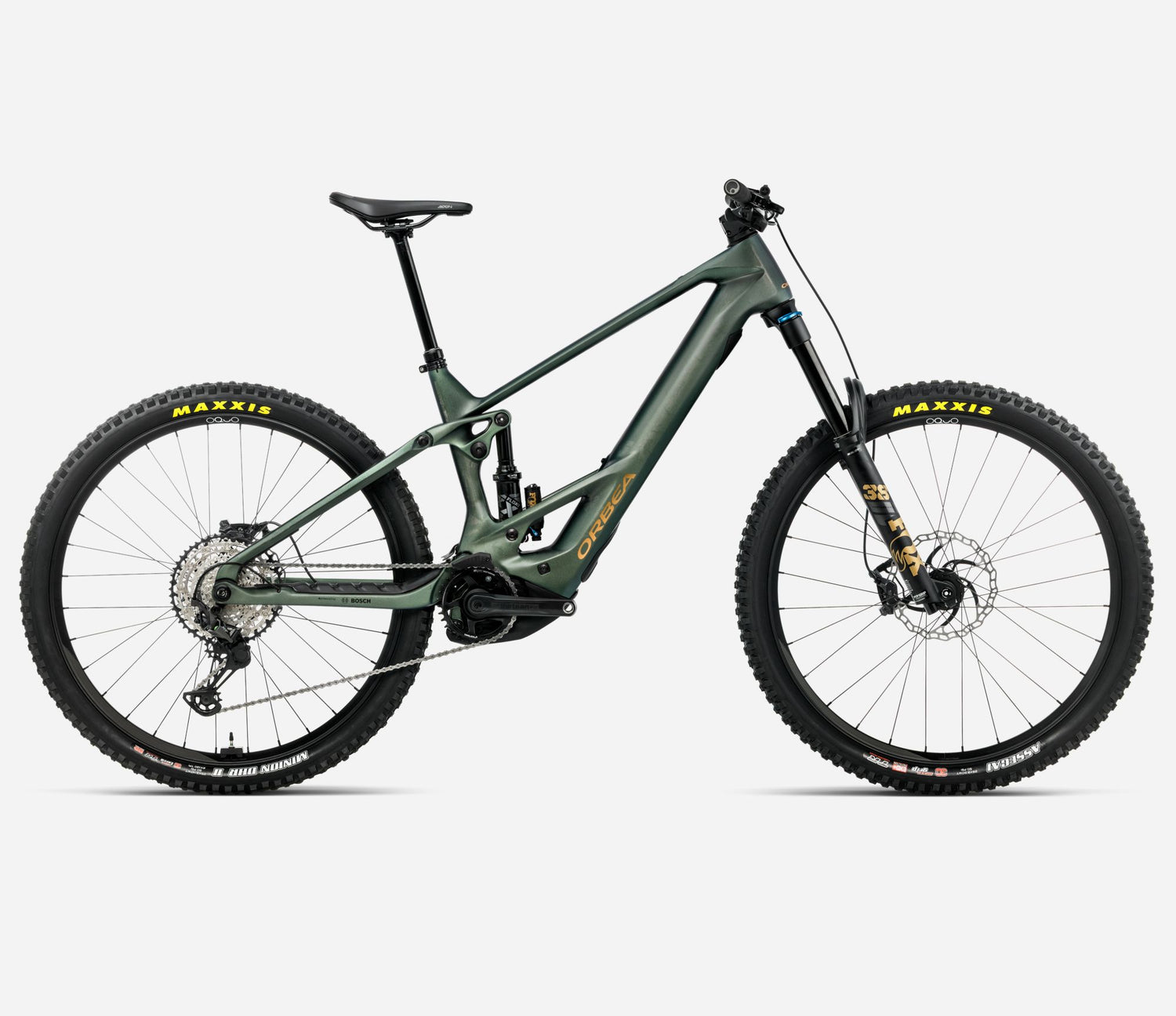

Orbea Wild M10 Carbon - 2026

Name: Orbea Wild M10 Carbon - 2026
Brand: Orbea
Availability: InStock

£7,399.00

💳

From ~£205/mo 0% interest-free finance

🚲

Cycle to Work Save up to 47% tax-free

Colour: Seaweed Carbon View (Matt)

Size: Small - 29"

View size guide ↓

📦 In stock with Orbea Allow 7–10 days for dispatch. Contact us for precise lead time — 01202 028162

Wheelie Bike Shop - Poole Sold outSame day dispatch if ordered before 1pm Mon–Fri

🎨

Customise with MyO Make it uniquely yours — Orbea's custom build programme

Don't like the stock colours? With Orbea MyO you can customise the frame colour, components and spec to build a bike that's uniquely yours — at no extra cost on many models.

Configure your Orbea →

🔧 Expert build & setup

🚚 Free UK delivery

🚲 Test ride in Poole

📞 Speak to an expert

About the Orbea Wild M10 Carbon - 2026

Specification:

Frameset

Frame

Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148

Shock

Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm

Fork

Fox 38 Float Performance 170 Grip 3-Pos QR15x110

Steerer tube

Alloy 1-1/2", Black Oxidated Bearing

Ebike

Battery

Bosch Powertube 750Wh Horizontal BBP3770

RANGE EXTENDER

N/A

Motor

Bosch Performance Line CX BDU3843

Display

Bosch System Module Kiox 400C

CHARGER

Bosch Charger 4A (230V) BPC3400

Remote

Bosch Mini Remote BRC3300

Drivetrain

Chainring

e*thirteen e*spec Direct Mount 34T Boost

Crank

e*thirteen Helix Core

Shifters

Shimano SLX M7100 I-Spec EV

Cassette

Shimano CS-M7100 10-51t 12-Speed

Rear derailleur

Shimano XT M8100 SGS Shadow Plus

Chain

Shimano M6100

Chainguide

e*thirteen Plus Bosch CX Gen4 CL 55 32-36t

Cockpit

Handlebar

OC Mountain Control MC20 Alu SL, Rise20, Width 800

Stem

OC Mountain Control MC20, 0º

Computer Mount

OC Computer Mount CM-05, Garmin/Sigma

Brakes

Shimano XT Hydraulic Disc

Rotors

Galfer Wave Rotors 203mm front / 203mm rear

Brakes Configuration

N/A

Wheels

DT Swiss H-1900 Spline 30c TLR 15/110mm 6-Bolt

Tyres

Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip

Tyres

Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra

Components

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Saddle

Fizik Aidon 208x145mm manganese rail

Orbea Wild 2025: Race-Bred e-MTB

The Orbea Wild H10 2025 is an e-MTB with race pedigree, ready to dominate any trail. It's durable frame and dialled suspension kinematics are a direct result of Orbea's experience at the highest levels of full suspension electric mountain bike enduro racing. This translates to a responsive and controlled ride, whether you're tackling technical climbs or flying down challenging descents.

Beyond its race-proven design, the Wild 2025 is packed with features that enhance performance and durability on the trail. Featuring the latest Bosch CX Gen 5 motor, reinforced tyres provide extra protection and grip, while a sub-21kg weight keeps the bike agile and easy to handle. Longer dropper posts allow for greater maneuverability on steep descents, and a careful selection of components, including a Fox 38 fork and OQUO wheels, ensures top-tier perfor- mance. Experience the thrill of a race-bred machine, optimised for your wildest adventures.

RIDING PERFORMANCE FORGED IN COMPETITION

Low weight and optimised frame construction, means performance in any situation.

- E-Optimized Rigidity

- Optimized Weight Distribution

- Race Developed Kinematics

- E-Optimized Geometry Steep ́n ́Deep
- Mullet Ready
- Less than 21kg

- OMR carbon or High Polished Alloy

ENDLESS POWER, CONTROLLED RESPONSES NEW BOSCH PERFORMANCE CX SMART SYSTEM

Fully powered and ready to rumble.

- New Bosch CX Gen 5 motor

- 750Wh / 600Wh battery

- 250Wh range extender

Orbea Wild H10 2025 - Tanzanite Blue Stone

PERFORMANCE THROUGH SIMPLICITY - READY FOR ACTION

- No compromise build kits - prioritise performance before weight.

- Fox 38
- OQUO Wheels

- Reinforced Tyres

- OC Components

- Extra Long Droppers

Geometry

Size	S	M	L	XL	S-MULLET	M-MULLET	L-MULLET	XL-MULLET
1-Seat Tube (C-T)	415	415	435	460	415	415	435	460
2-Top Tube (EFF)	653	586	612	639	561	583	610	636
3-Head Tube	110	120	130	140	110	120	130	140
4-Chainstay	448	448	448	448	448	448	448	448
5-BB Height	358	358	358	358	358	358	358	358
6-BB Drop	22	22	22	22	22	22	22	22
7-Wheelbase	1228	1252	1282	1311	1226	1250	1279	1309
8-Head Angle	63.5	63.5	63.5	63.5	63.5	63.5	63.5	63.5
9-Seat Angle	77.5	77.5	77.5	77.5	77.5	77.5	77.5	77.5
10-Standover	730	730	730	730	727	727	727	727
11-Reach	435	455	480	505	435	455	480	505
12-Stack	625	634	643	652	627	636	645	654
13-Fork Length	585	585	585	585	585	585	585	585
14-Rake	44	44	44	44	44	44	44	44

📐

Full geometry & technical data

Orbea publish detailed geometry tables — reach, stack, wheelbase, chainstay and angles — for every frame size directly on their website.

View on Orbea.com →

Not sure which size suits you? Call us on 01202 028162 — we ride these bikes and can advise.

Not sure on size? Call us on 01202 028162 — our team can advise based on your height, riding style and inseam.

Small

Rider height163–173cm / 5'4"–5'8"

Medium

Rider height171–181cm / 5'7"–5'11"

Large

Rider height179–189cm / 5'10"–6'2"

X-Large

Rider height187–197cm / 6'1"–6'5"

These are Orbea's recommended height ranges. Fit is personal — ask us and we'll help you find the right size. MyO custom builds can also adjust geometry to suit your preferences.
