For over 10 years, our best-selling model; the Mega has been racking up awards on Enduro stages and in the press around the world. With 4 Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing. However, we never rest on our laurels and 2021 sees the introduction of the 4th generation Mega.
Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of our riders and customers alike.

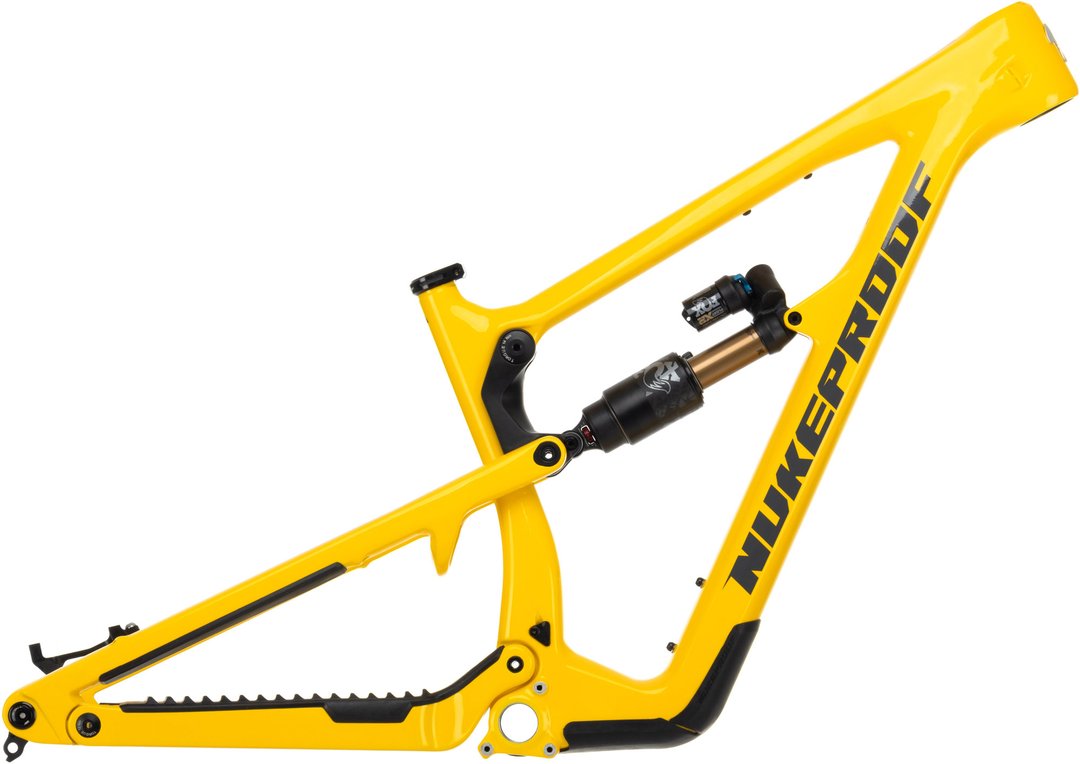

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The new carbon swingarms helps reduce the unsprung weight on the rear of the bike. Again, the Mega is available in both 27.5” or 29” wheel sizes, with both frame designs tailored around each wheel size. All forged part are also made from 6061-T6 Aluminium
After winning 4 Enduro World Series Titles in 3 years the all new design is an evolution of our ultimate Enduro bike. At the heart of the frame is all new suspension Kinematics, designed to be more subtle off the top, whilst remaining progressive and predictable . Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:
- All New Carbon chassis
- Designed and improved suspension kinematics
- Tube In Tube design for easy cable installation
- All new Geometry
- Optimised sizing/fit - Small to XXL
- SRAM UDH
- Now fits a 750ml water bottle inside the main front triangle!
The new Mega frame is optimised around the rider and weight distribution. The new geometry features dynamic saddle offset. Seat angles are optimised for each frame size and the seat tube itself is designed to take a longer dropper post if required.
GEOMETRY & SIZING
|(C) EFFECTIVE TOP TUBE LENGTH||567.7||592.71||610.87||632.79||654.71|
|(D) SEATTUBE LENGTH||380||410||440||470||500|
|(E) EFFECTIVE SEATTUBE ANGLE||77.5°||77.5°||78°||78°||78°|
|(F) SEATTUBE ANGLE (ACTUAL)||71°||71°||71.5°||71.5°||71.5°|
|(G) SADDLE HEIGHT AT SADDLE OFFSET||650||700||750||800||850|
|(H) SADDLE OFFSET AT SADDLE HEIGHT||142.22||158.59||166.66||181.58||196.49|
|(I) HEADTUBE LENGTH||100||100||120||130||140|
|(J) HEADTUBE ANGLE||64°||64°||64°||64°||64°|
|(K) CHAINSTAY LENGTH||440||440||440||440||440|
|(L) FRONT CENTRE||758.5||783.5||812.11||836.42||860.72|
|(N) BOTTOM BRACKET DROP||30||30||30||30||30|
|(O) BOTTOM BRACKET HEIGHT||345||345||345||345||345|
|(P) STAND OVER HEIGHT||725.16||724.41||722.92||730.78||736.07|
|(Q) FORK TRAVEL||170||170||170||170||170|
|(S) FORK OFFSET||42||42||42||42||42|
|(T) AXLE TO CROWN||582||582||582||582||582|
|(U) MAXIMUM SEATPOST INSERT||250||250||255||274||293|
All dimensions in mm unless otherwise stated
