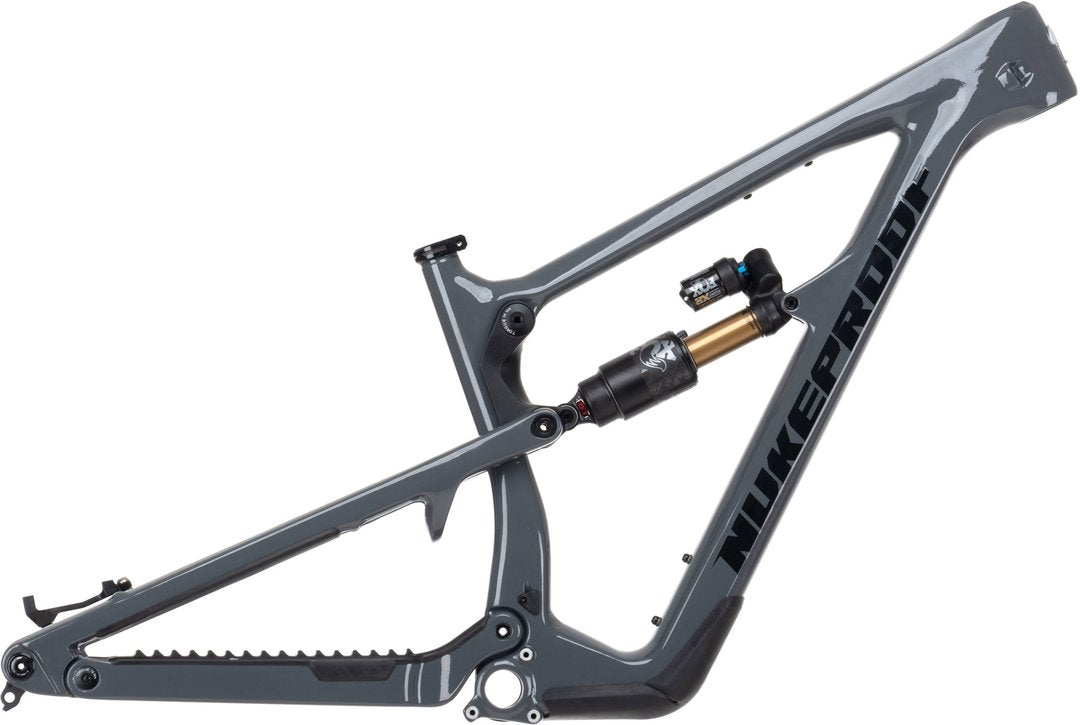

Nukeproof Mega 290 Carbon Frame Grey

For over 10 years, our best-selling model; the Mega has been racking up awards on Enduro stages and in the press around the world. With 4 Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing. However, we never rest on our laurels and 2021 sees the introduction of the 4th generation Mega.

Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of our riders and customers alike.

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The new carbon swingarms helps reduce the unsprung weight on the rear of the bike. Again, the Mega is available in both 27.5” or 29” wheel sizes, with both frame designs tailored around each wheel size. All forged part are also made from 6061-T6 Aluminium

After winning 4 Enduro World Series Titles in 3 years the all new design is an evolution of our ultimate Enduro bike. At the heart of the frame is all new suspension Kinematics, designed to be more subtle off the top, whilst remaining progressive and predictable . Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:

• All New Carbon chassis
• Designed and improved suspension kinematics
• Tube In Tube design for easy cable installation
• All new Geometry
• Optimised sizing/fit - Small to XXL
• SRAM UDH
• Now fits a 750ml water bottle inside the main front triangle!

The new Mega frame is optimised around the rider and weight distribution. The new geometry features dynamic saddle offset. Seat angles are optimised for each frame size and the seat tube itself is designed to take a longer dropper post if required.

GEOMETRY & SIZING



	SMALL	MEDIUM	LARGE	X-LARGE	XX-LARGE
(A) REACH	430	455	475	495	515
(B) STACK	621.16	621.16	639.22	648.24	657.27
(C) EFFECTIVE TOP TUBE LENGTH	567.7	592.71	610.87	632.79	654.71
(D) SEATTUBE LENGTH	380	410	440	470	500
(E) EFFECTIVE SEATTUBE ANGLE	77.5°	77.5°	78°	78°	78°
(F) SEATTUBE ANGLE (ACTUAL)	71°	71°	71.5°	71.5°	71.5°
(G) SADDLE HEIGHT AT SADDLE OFFSET	650	700	750	800	850
(H) SADDLE OFFSET AT SADDLE HEIGHT	142.22	158.59	166.66	181.58	196.49
(I) HEADTUBE LENGTH	100	100	120	130	140
(J) HEADTUBE ANGLE	64°	64°	64°	64°	64°
(K) CHAINSTAY LENGTH	440	440	440	440	440
(L) FRONT CENTRE	758.5	783.5	812.11	836.42	860.72
(M) WHEELBASE	1197.48	1222.48	1251.09	1275.39	1299.7
(N) BOTTOM BRACKET DROP	30	30	30	30	30
(O) BOTTOM BRACKET HEIGHT	345	345	345	345	345
(P) STAND OVER HEIGHT	725.16	724.41	722.92	730.78	736.07
(Q) FORK TRAVEL	170	170	170	170	170
(R) TRAIL	132.33	132.33	132.33	132.33	132.33
(S) FORK OFFSET	42	42	42	42	42
(T) AXLE TO CROWN	582	582	582	582	582
(U) MAXIMUM SEATPOST INSERT	250	250	255	274	293

All dimensions in mm unless otherwise stated
